Water Manifolds

Our Water Manifold and Air Manifold are designed to be used with mounting clamps manufactured by Hydro-Craft, Inc., (not included).

These cost effective manifolds are perfect for effecient air distribution throughout your machine station. They offer the following advantages over competitive manifolds:

  • May be used for Air, Water or Hydraulic ( up to 1000 PSI).
  • Corrosion resistant finish for anodized aluminum manifolds
  • Color coded for application (blue, red, black, silver).
  • Available in two inlet port sizes and a variety of outlet configurations.
  • Ports are located at 45º to take advantage of standard industrial fittings.
  • Higher operating temperatures.
  • Custom applications available upon request.

Below is a list of our standard products:

Manifolds Standard Products - Production Engineering

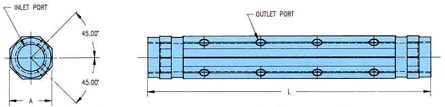

Part #Inlet (NPT)Outlet (NPT)# of CircuitsA (inches)L (inches)
1011-152-06X 3/4/2016 1/4/2016 6 1.5 8.25
1011-152-10X 3/4/2016 1/4/2016 10 1.5 12.25
1011-172-10X 1/1/2004 1/4/2016 10 2.25 13.25
1011-172-16X 1/1/2004 1/4/2016 16 2.25 19.25


Manifolds Standard Products - Production Engineering

Part #Inlet (NPT)Outlet (NPT)# of CircuitsA (inches)L (inches)
1011-252-04X 3/4/2016 1/4/2016 4 1.5 15
1011-252-06X 3/4/2016 1/4/2016 6 1.5 21


Manifolds Standard Products - Production Engineering

Part #Inlet (NPT)Outlet (NPT)# of CircuitsA (inches)L (inches)
1011-372-10X 1/1/2004 1/4/2016 10 2.25 18
1011-372-16X 1/1/2004 1/4/2016 16 2.25 27


X denotes red, blue, and black available as standard colors.
