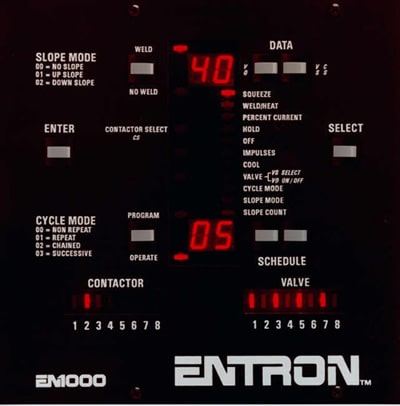

EN1000/EN1001 Cascade
Cascade/Multi-Valve Controls
The EN1000/EN1001 Cascade/Multi-Valve Control is ideal for programming schedules for single or multiple transformer resistance welding machines with multiple valve operations.
Capabilities:
- 100 Unique Schedules
- Chained and Successive Modes
- Repeat / Non-Repeat
- Weld and Valve Control Relays
- 8/16 Valve Output Available
- Multiple Weld Programming
- Multiple Job Set-ups
- Easily Programmed
- Program only the functions required

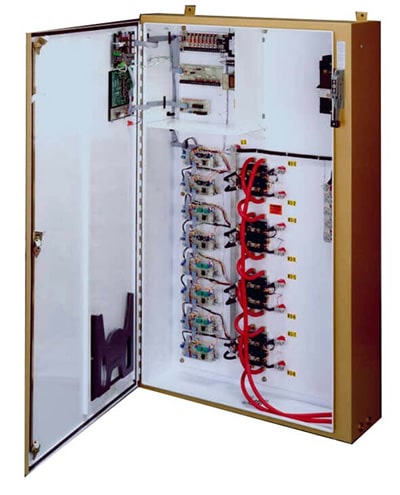

- Up to 8 SCRs
Options:
- Networking – provides communication to multiple controls
- Remote Data Accessories – enables remote programming and backup functions
- External Binary Schedule Select (S99)
- Integrated Pressure Sense and Control
- 9-16 Valve Extension (VE) – provides 8 additional valve outputs
- Terminal Strip Skip (TSS) – adds 8 binary select inputs
- Water Flow Switch
Features:
- Spot Sequence
- Pulsation Sequence
- Upslope / Downslope
- Quench / Temper
- Forge Delay
- Multiple Weld/Multiple Current Sequence
- Preheat / Postheat
- External Schedule Select
- Process and Error Outputs
- Seam Sequence
