Undersized Weld
Definition
The weld button/nugget diameter does not meet applicable specifications. (The weld nugget is the fused volume that joins the workpieces. The button is the material remaining attached to the fused area after destructive sheet separation.)
Description
Detection

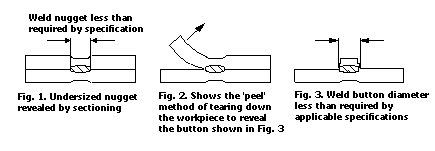

The button diameter is determined by measurement after teardown; nugget diameters may be determined by sectioning the weld. Consult the applicable specification for appropriate measurement method and size requirement.
Significance
Quality, Workplace Issues, Cost, Downtime, Maintenance, Throughput (cycle time; PPH), are all potentially affected by this condition. Special considerations are noted below:
- Quality: Button diameter is the key measure used to control spot weld quality in the plant.
Possible Causes
Strong Possibilities
- Damaged Part
- Defective Air or Hydraulic Cystem
- Dirty Material
- Electrode Face Not Parallel to Workpiece
- Electrode Skidding/Sliding
- Electrode Wear
- Excessive Sealer
- Incorrect Cylinder
- Incorrect Material/Coating
- Incorrect Test Procedure
- Insufficient Cooling
- Poor Electrical Connections
- Poor Mechanical Connection
- Poor or Varying Part Fit-up
- Poor Weld Accessibility
- Shunting of Guns or Parts
- Weld Current Low
- Weld Force High
- Weld Time Short
- Wrong Tips
