Used Federal Bench Welder

Print

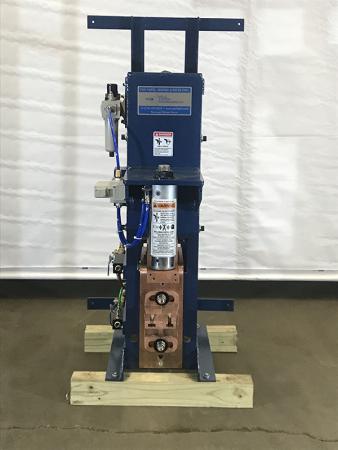

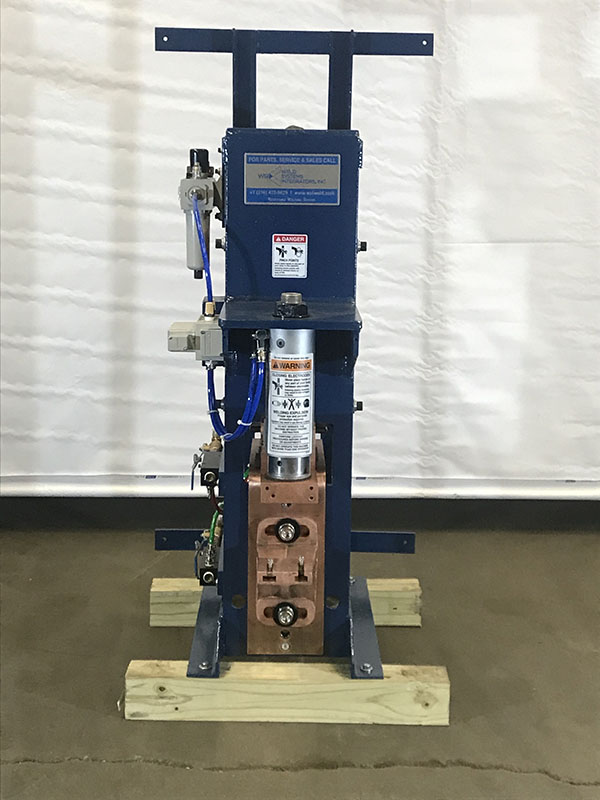

Rebuilt Federal bench welder in excellent condition, available from Weld Systems Integrators. Customer choice of weld control and initiation.

Rebuilt Rebuilt Federal bench welder – Stock / Serial #: 20590


Used Equipment Quote

Rebuilt Federal bench welder, in excellent condition, serial #20590 for sale from Weld Systems Integrators. Includes remanufactured transformer, customer choice of weld control and initiation, new hose package, air valve and FRL. Furthermore, tooling or Spot welding arms available upon request.

Back to: Bench Top Welder
Stock / Serial #:
20590
Manufacturer Name:
Federal
Type:
Bench Welder
Mfg. Model #:
n / a
kVA:
50
Voltage:
440
Phase:
Single
Low Secondary Voltage:
3.3
High Secondary Voltage:
6.4
# of Tap Switch Positions:
5
Max. Secondary Current:
23.5 K amps
Throat Depth to Center of Platens:
7″
Platen Size:
4″ x 4″
Throat Depth to Center of Electrodes:
n / a
Arm Diameter:
n / a
Holder Diameter:
n / a
Electrode Size:
n / a
Cylinder Type:
Milco, AWG-1300-G
Cylinder Diameter:
n / a
Cylinder Stroke:
1.5″
Maximum Weld Force, #’s:
1000
Weld Control Manufacturer:
Customer selection
Weld Control Mfg. Model #:
Customer selection
Disconnect Size:
n / a
Initiation:
Customer selection
General Condition:
Rebuilt Welder, excellent condition, remanufactured transformer, customer choice of weld control and initiation. New hose package, air valve and FRL.
Additional Details:
Tooling or Spot welding arms available upon request.
Warranty:
1-Year
Availability:
Immediate
