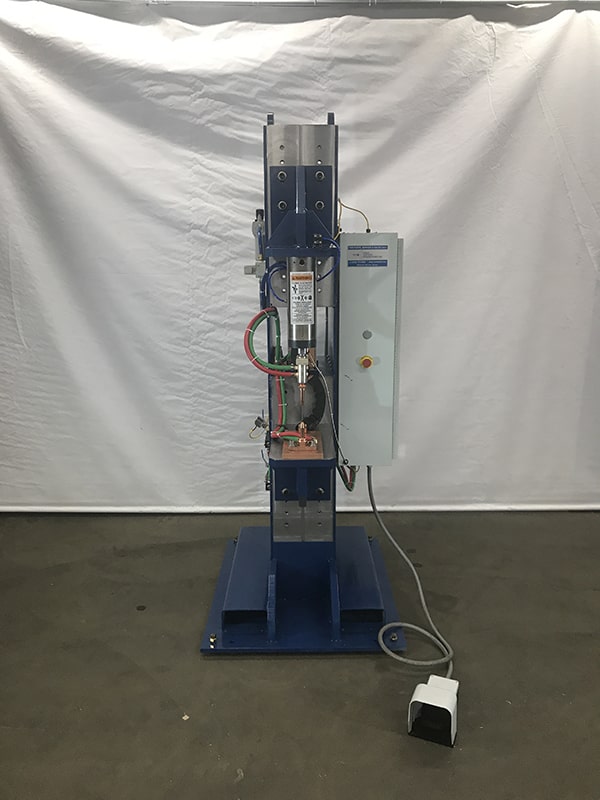

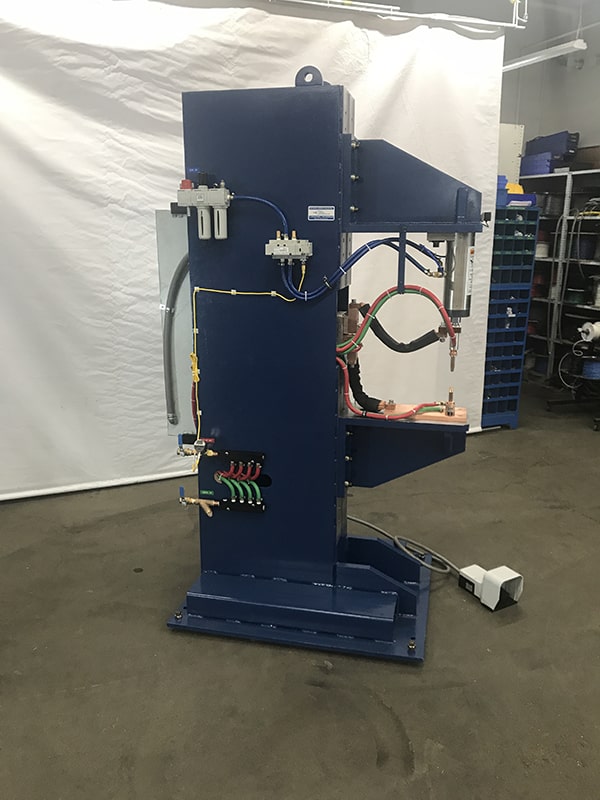

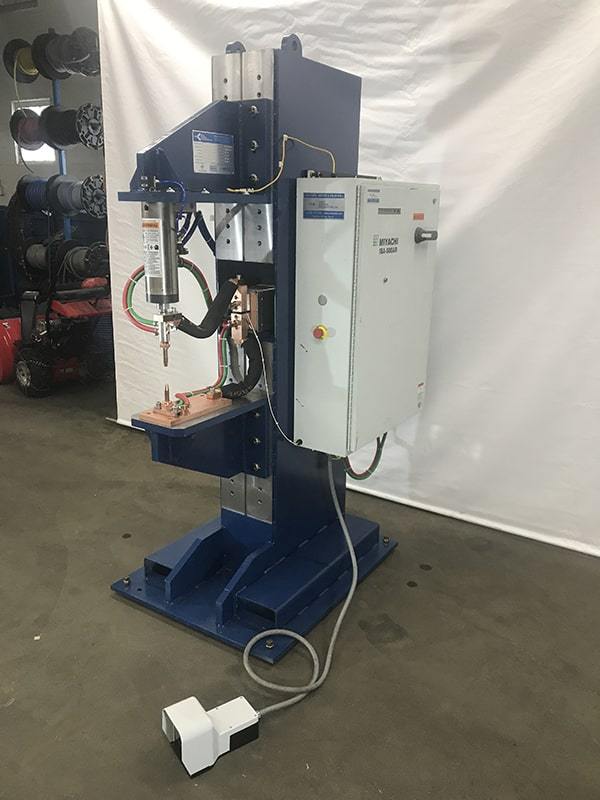

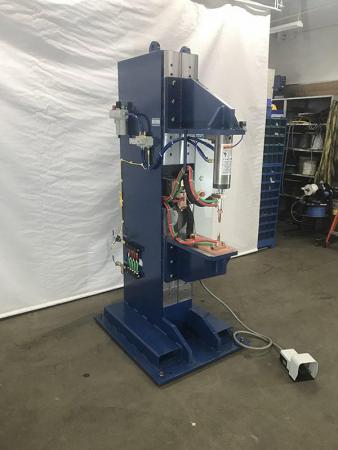

Used EconoPress Welder
Used EconoPress welder FOR SALE
[ Stock Serial #: 20617 ]. Excellent used welder, new frame, new primer and paint, new air flow and regulation components, new water system components, new LOTO valves installed, new air and water flow switches installed.
Rebuilt Miyachi, IT-1140-3, 140 KVA MFDC Transformer, calibrated and tested ISA-500AR weld control.
New two stage footswitch also installed.
Assembled and fully tested along with our 6 month warranty.
Used Equipment Quote
Customer can specify holders and electrodes for an additional charge.
Stock / Serial #:
20617
Manufacturer Name:
WSI
Type:
EconoPress
Mfg. Model #:
WSI-ECP1-18-DC-1-140-1-2430X4-480/60-250
kVA:
140 MFDC
Voltage:
460
Phase:
Three
Low Secondary Voltage:
9
High Secondary Voltage:
13
# of Tap Switch Positions:
2x Hard Wired
Max. Secondary Current:
25,000
Throat Depth to Center of Platens:
18'
Platen Size:
n / a
Throat Depth to Center of Electrodes:
n / a
Arm Diameter:
n / a
Holder Diameter:
n / a
Electrode Size:
#2MT
Cylinder Type:
Air
Cylinder Diameter:
n / a
Cylinder Stroke:
4'
Maximum Weld Force, #’s:
2,430
Weld Control Manufacturer:
Miyachi
Weld Control Mfg. Model #:
ISA-500AR
Disconnect Size:
250 amps
Initiation:
2 stage foot switch
General Condition:
Excellent welder, new frame, primed and painted, new air flow and regulation components, new water system components, new LOTO valves installed, new air and water flow switches installed. Rebuilt Miyachi, IT-1140-3, 140 KVA MFDC Transformer, calibrated and tested ISA-500AR weld control. New two stage footswitch also installed. All assembled and fully tested.
Warranty:
6 Month
Availability:
Immediate
