Used Taylor Winfield Bench Welder

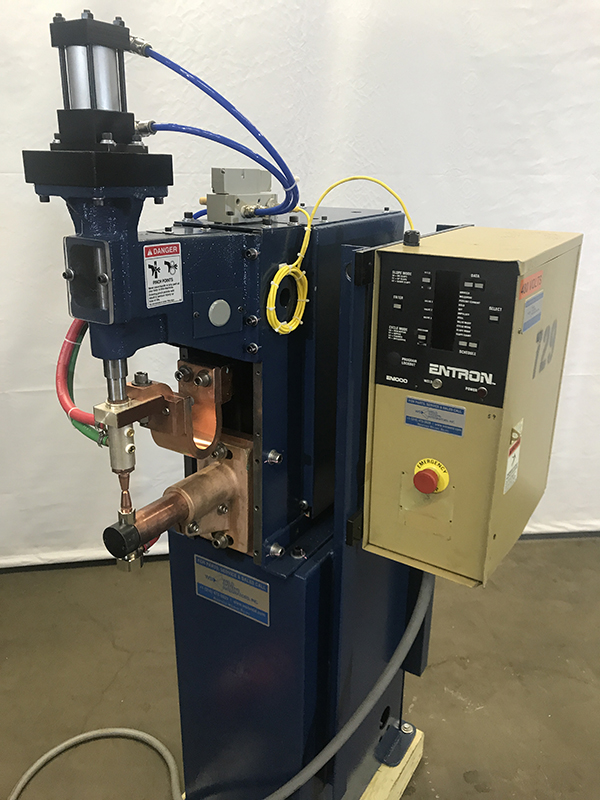

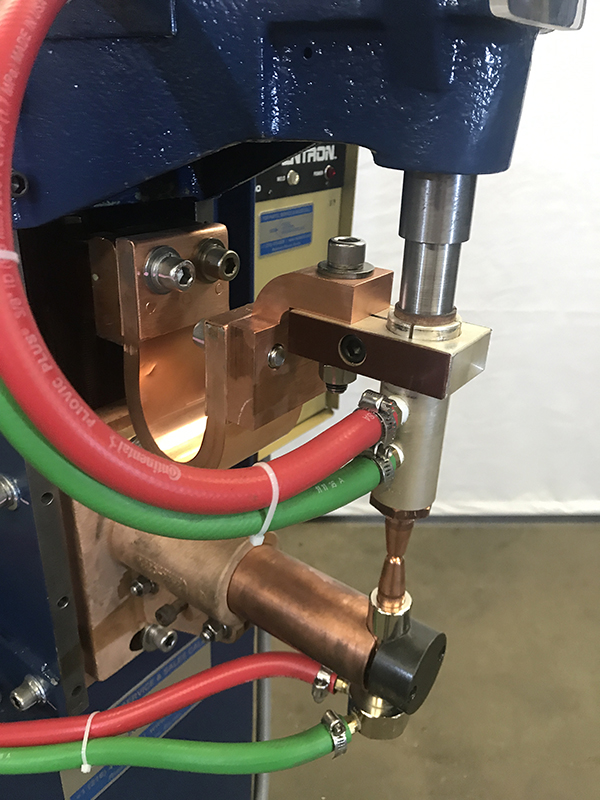

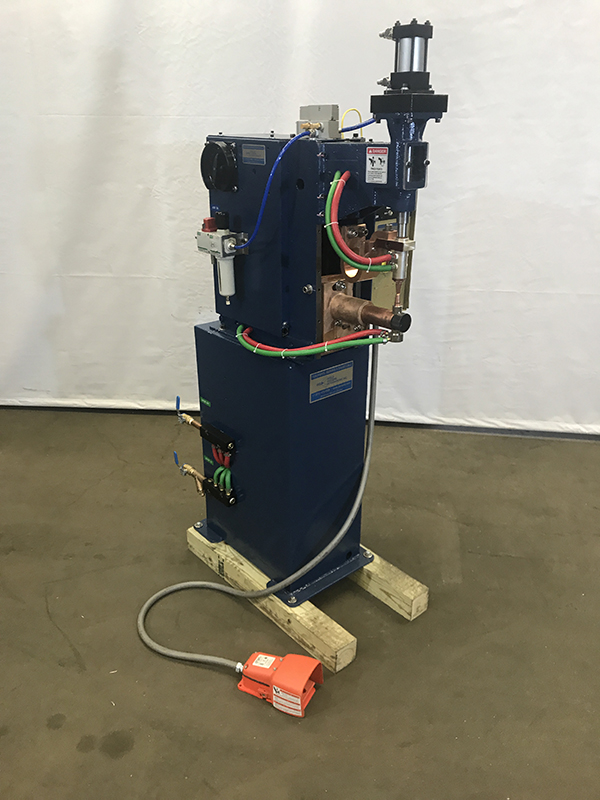

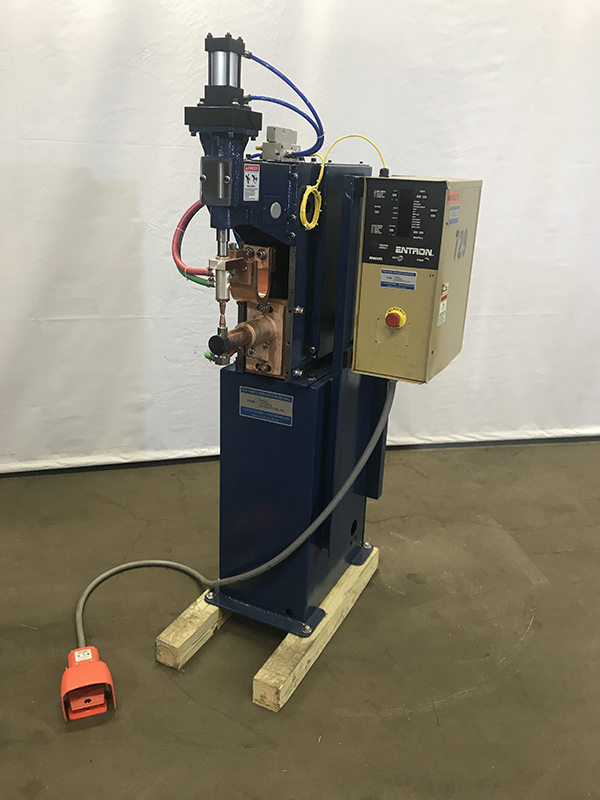

Remanufactured Taylor Winfield bench welder [ Serial # 20596 ] mounted on pedestal, in excellent condition. New cylinder, air prep, air valve, air hose, water hose, manifold, strainer, ball valves, electrode holders, electrodes, shunts, transformer flushed and tested, new E-stop installed. Completely tested.
Used Equipment Quote
Taylor Winfield Bench Welder
Used Taylor Winfield bench welder, original mfg. model #EB2-8-10 Air FOR SALE. Immediate availability. Features include – 440 VAC, single-phase, 10 KVA, 2″ diameter weld cylinder, 1.5″ stroke, 8″ throat depth to center of electrodes and Entron EN1000-300E weld controls.
Stock / Serial #:
20596
Manufacturer Name:
Taylor Winfield
Type:
Bench Welder on Pedestal
Mfg. Model #:
EB2-8-10 Air
kVA:
10
Voltage:
440
Phase:
Single
Low Secondary Voltage:
1.5
High Secondary Voltage:
3
# of Tap Switch Positions:
Series / Parallel
Max. Secondary Current:
15 K Amps
Throat Depth to Center of Platens:
N / A
Platen Size:
N / A
Throat Depth to Center of Electrodes:
8
Arm Diameter:
2
Holder Diameter:
1
Electrode Size:
5 RW
Cylinder Type:
Air
Cylinder Diameter:
2
Cylinder Stroke:
1.5
Maximum Weld Force, #’s:
260 lbs.
Weld Control Manufacturer:
Entron
Weld Control Mfg. Model #:
EN1000-300E
Disconnect Size:
N / A
Initiation:
2 Stage Foot Switch
General Condition:
Great working welder with new cylinder, air prep, air valve, air hose, water hose, manifold, strainer, ball valves, electrode holders, electrodes, shunts, transformer flushed and tested, new E-stop installed.
Warranty:
6-Months
Availability:
Immediate
