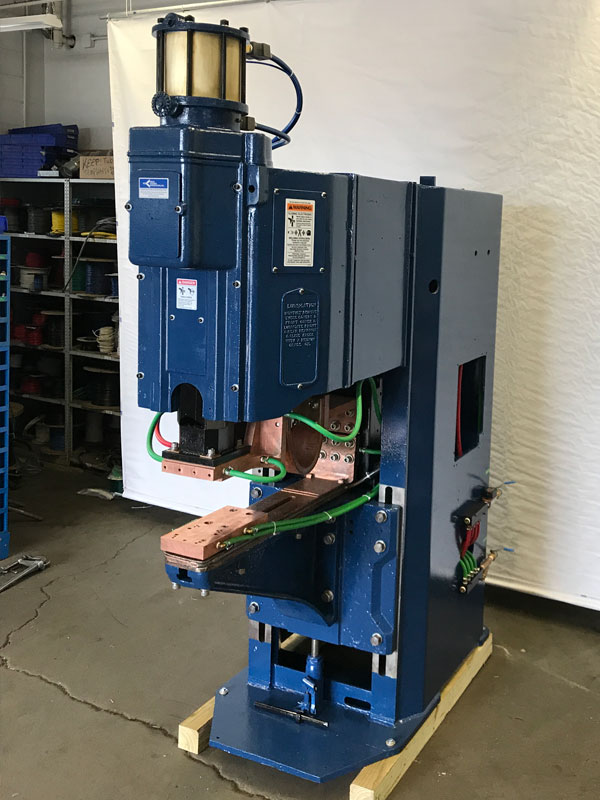

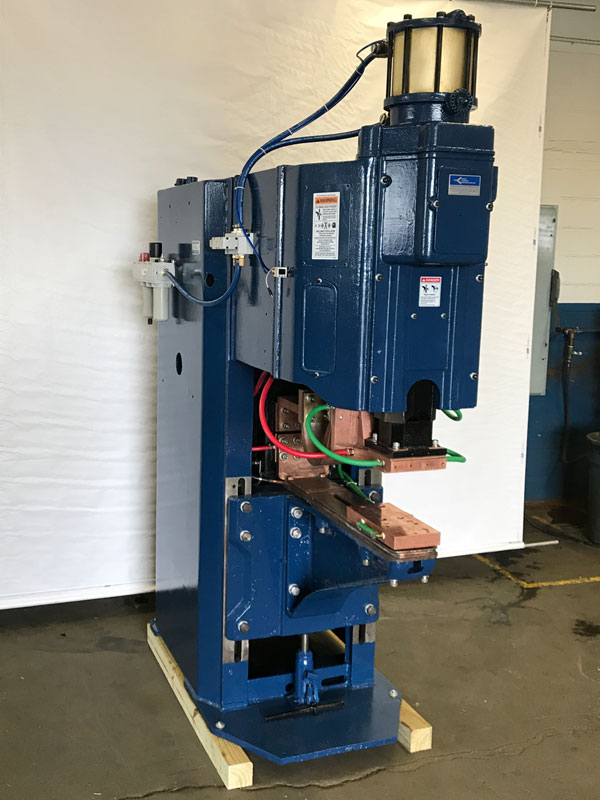

Used Taylor Winfield Projection Welder

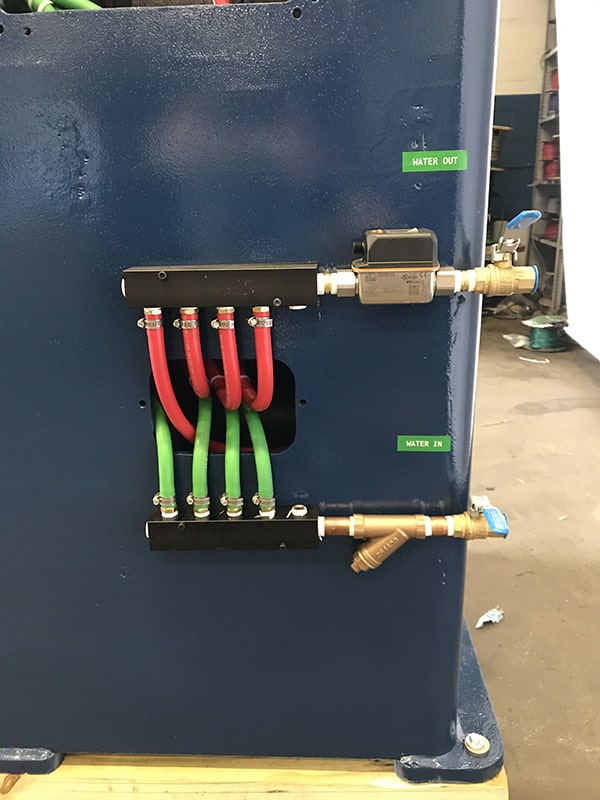

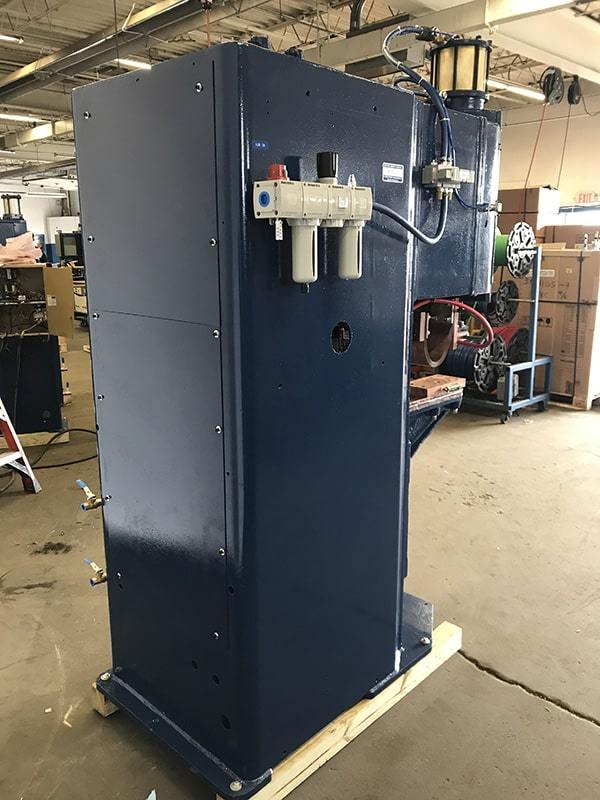

Rebuilt Taylor Winfield Projection Welder [ serial #: 20603 ] in excellent condition including: rebuilt transformer and cylinder. New parallel water manifolds, water hoses, IFM flow switch, air prep/valve, air flow controls, air pressure switch.
Used Equipment Quote
Taylor Winfield Projection Welder
Rebuilt Taylor Winfield projection welder, FOR SALE from Weld Systems Integrators. Immediate availability upon customer weld control selection. Features include – 480 VAC, single-phase, 150 KVA, 8″ diameter weld cylinder, 4″ stroke, 30″ throat depth to center of electrodes and 6 month warranty.
Stock / Serial #:
20603
Manufacturer Name:
Taylor Winfield
Type:
Projection Welder
Mfg. Model #:
N / A
kVA:
150
Voltage:
480
Phase:
Single
Low Secondary Voltage:
N / A
High Secondary Voltage:
N / A
# of Tap Switch Positions:
Hi / Low and 4 Position tap
Max. Secondary Current:
18.8 K Amps
Throat Depth to Center of Platens:
30
Platen Size:
Non T Slot, 8″ x 8″ – Mounting Pad
Throat Depth to Center of Electrodes:
N / A
Arm Diameter:
N / A
Holder Diameter:
N / A
Electrode Size:
N / A
Cylinder Type:
Air
Cylinder Diameter:
8
Cylinder Stroke:
4
Maximum Weld Force, #’s:
4200 lbs.
Weld Control Manufacturer:
Customer Selection
Weld Control Mfg. Model #:
Customer Selection
Disconnect Size:
N / A
Initiation:
Customer Selection
General Condition:
Rebuilt Welder in excellent condition including: rebuilt transformer and cylinder. New parallel water manifolds, water hoses, IFM flow switch, air prep/valve, air flow controls, air pressure switch.
Warranty:
6-Months
Availability:
Immediate upon customer weld control selection
