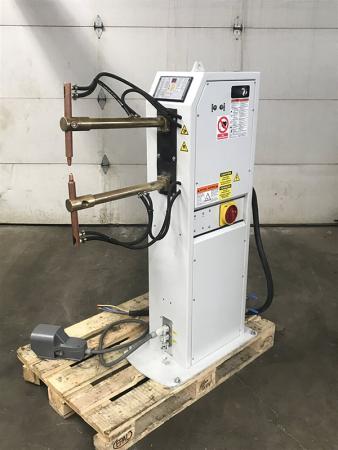

Used TECNA Rocker Welder
This TECNA was used in light production for several years. They are very clean, have been fully tested, repaired as required, and meet new welder production requirements.
New foot switch installed, LOTO devices installed on air and water inlets. Arms are adjustable, short throat 15″, 363#’s of force, 2.4″ electrode opening. Deep throat 27.6″, 198#’s of force, 4.1″ electrode opening.
Ask about our safety Soft-Touch options.
Used Equipment Quote
TECNA Rocker Welder
Used TECNA rocker arm welder, with integrated weld control for sale. Features include – 220/440 VAC, single-phase, 20 KVA, , 4.1″ stroke, 27.6″ throat depth and 2-stage foot pedal Initiation.
Stock / Serial #:
W-4002
Manufacturer Name:
TECNA
Type:
Rocker Welder
Mfg. Model #:
WTR-4647
kVA:
20
Voltage:
220 / 440
Phase:
Single
Low Secondary Voltage:
4
High Secondary Voltage:
4
# of Tap Switch Positions:
n / a
Max. Secondary Current:
12,000
Throat Depth to Center of Platens:
n / a
Platen Size:
n / a
Throat Depth to Center of Electrodes:
27.6″
Arm Diameter:
1.57″
Holder Diameter:
1″
Electrode Size:
# 1MT
Cylinder Type:
Air
Cylinder Diameter:
n / a
Cylinder Stroke:
4.1″
Maximum Weld Force, #’s:
363
Weld Control Manufacturer:
TECNA
Weld Control Mfg. Model #:
TE-90
Disconnect Size:
n / a
Initiation:
2 Stage Foot Switch
General Condition:
Welders were used in light production for several years, they are very clean, have been fully tested, repaired as required, and meet new welder production requirements.
Additional Details:
New foot switch installed, LOTO devices installed on air and water inlets. Arms are adjustable, short throat 15″, 363#’s of force, 2.4″ electrode opening. Deep throat 27.6″, 198#’s of force, 4.1″ electrode opening.
Warranty:
6-Months
Availability:
Immediate
