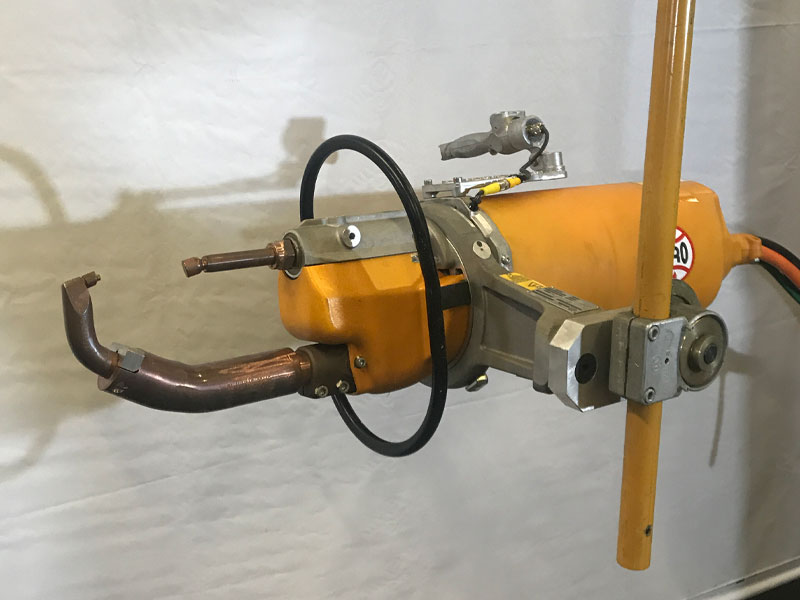

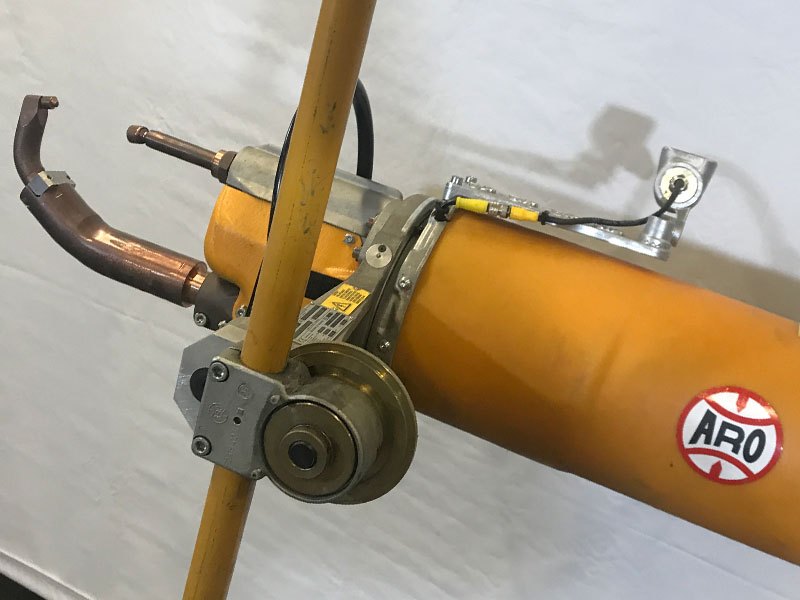

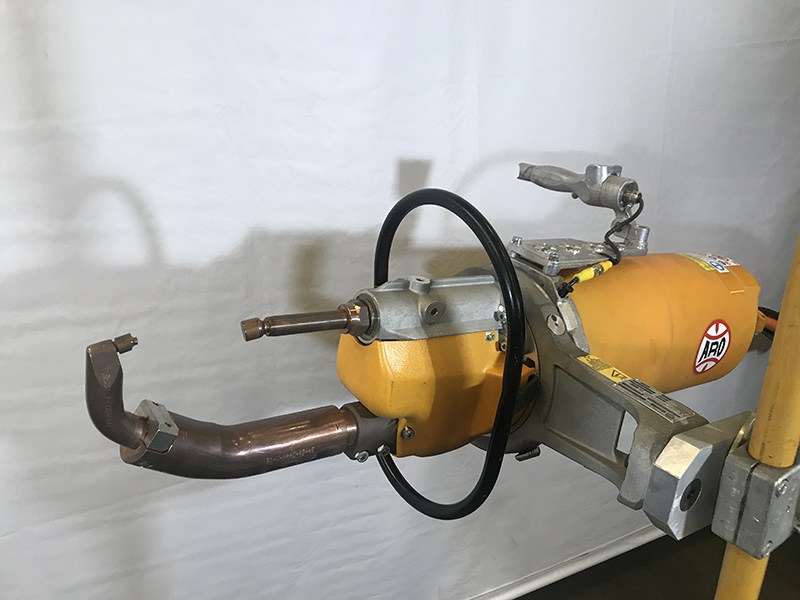

Used ARO Mid-Freq C-Type Weld Gun
Great condition ARO mid-freq c-type weld gun, only used temporarily for 30 days in a prototype design. Never used in production. Serial #: CMA5711A156J7M
Used Equipment Quote
ARO Mid-Freq C-Type Weld Gun
Used ARO mid-freq c-type weld gun, original mfg. model #V142814000U FOR SALE. Immediate availability. Features include 70 KVA, 60 mm arm diameter, 70 mm total, trigger handle, working plus retract and customer choice or weld controls.
Stock / Serial #:
CMA5711A156J7M
Manufacturer Name:
ARO
Type:
Mid-Freq C-Type Weld Gun
Mfg. Model #:
V142814000U
kVA:
70
Voltage:
480
Phase:
Three-Phase
Low Secondary Voltage:
N / A
High Secondary Voltage:
8.5
# of Tap Switch Positions:
N / A
Max. Secondary Current:
30 K Amps
Throat Depth to Center of Platens:
N / A
Platen Size:
N / A
Throat Depth to Center of Electrodes:
N / A
Arm Diameter:
60 mm
Holder Diameter:

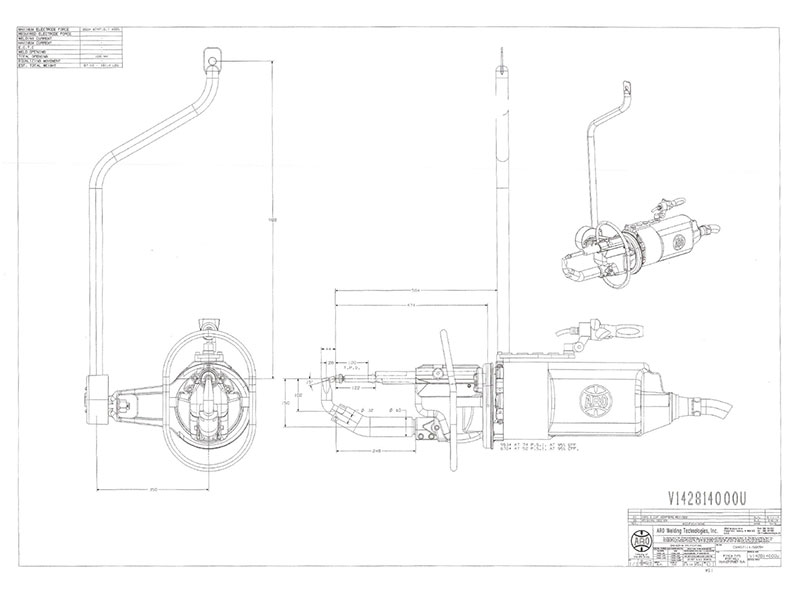

See arm configuration picture
Electrode Size:
5 RW
Cylinder Type:
Air
Cylinder Diameter:
N / A
Cylinder Stroke:
70 mm total, working plus retract
Maximum Weld Force, #’s:
1030 lbs.
Weld Control Manufacturer:
Customer selection
Weld Control Mfg. Model #:
Customer selection
Disconnect Size:
N / A
Initiation:
Trigger handle
General Condition:
Great condition ARO gun, only used temporarily for 30 days in a prototype design. Never used in production.
Warranty:
6-Months
Availability:
Immediate
