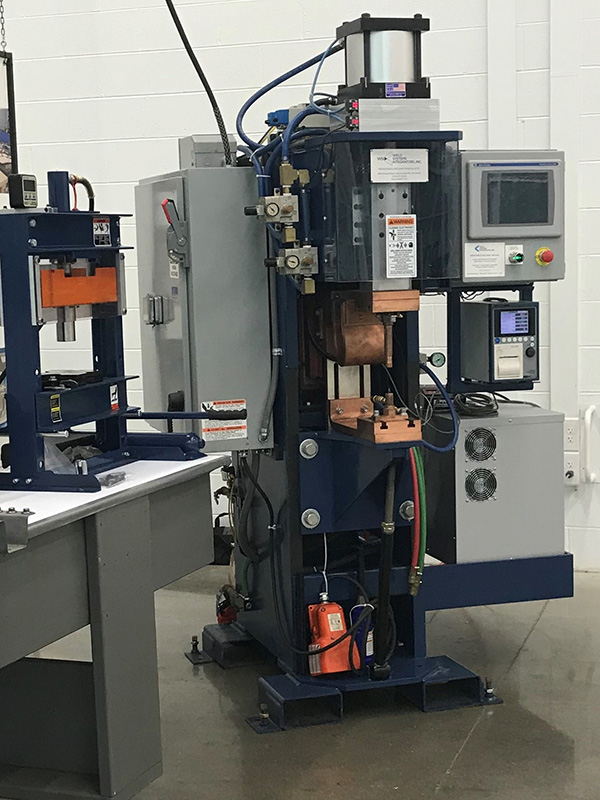

Used WSI CD Press-Type Welder
Generation 1 Capacitive Discharge Lab Welder, used only for prototype parts and process development. Welder has these additional features: A/B PLC and HMI with standard WSI Programming, Fast Follow Up Package, Lite Touch Pnuematic System, Miyachi MM-370 Weld Checker installed, Displacement Sensor installed, Water Flow Switch installed, A/C with filter installed.
Used Equipment Quote
.jpg)
Used Weld Systems Integrators capacitive discharge lab welder FOR SALE from Weld Systems Integrators. 2 – 3 week availability. The WSI CD Welder, model WCD-9KJ-12-CD features include – 440 VAC, single-phase, 9 KJ, 8″ diameter weld cylinder, 4″ stroke and come with Miyachi P-9000 controls.
Stock / Serial #:
20329
Manufacturer Name:
Weld Systems Integrators
Type:
CD Press-Type Welder
Mfg. Model #:
WCD-9KJ-12-CD
kVA:
9 KJ
Voltage:
440
Phase:
Single
Low Secondary Voltage:
n / a
High Secondary Voltage:
23
# of Tap Switch Positions:
None
Max. Secondary Current:
100 K Amps
Throat Depth to Center of Platens:
12″
Platen Size:
6″ x 6″
Throat Depth to Center of Electrodes:
n / a
Arm Diameter:
n / a
Holder Diameter:
n / a
Electrode Size:
n / a
Cylinder Type:
Air
Cylinder Diameter:
8″
Cylinder Stroke:
4″
Maximum Weld Force, #’s:
4000
Weld Control Manufacturer:
Miyachi
Weld Control Mfg. Model #:
P-9000
Disconnect Size:
30 Amps
Initiation:
2 Stage Foot Switch
General Condition:
Generation 1 Capacitive Discharge Lab Welder, used only for prototype parts and process development. Welder has these additional features: A/B PLC and HMI with standard WSI Programming, Fast Follow Up Package, Lite Touch Pnuematic System, Miyachi MM-370 Weld Checker installed, Displacement Sensor installed, Water Flow Switch installed, A/C with filter installed.
Warranty:
6 months
Availability:
2 – 3 weeks
