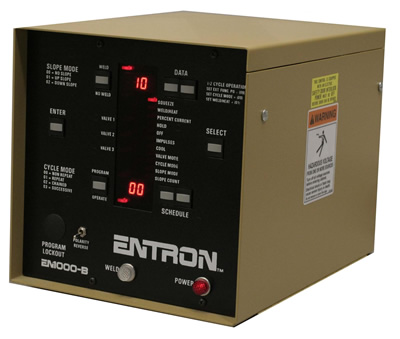

EN1000/EN1001 Bench
Multiple Schedule/Multiple Sequence Controls
The EN1000/EN1001 Series Bench Control is ideal for programming schedules for welding coated materials, aluminum, other non-ferrous metals, special alloys, multiple thickness of materials and many special part configurations.
Capabilities:
- Store up to 50 Unique Schedules
- Four Cycle Modes can be programmed for complex welding schedules
- Single valve output circuitry
Options:
- Networking – provides communication to multiple controls
- Remote Data Accessories – enables remote programming and backup functions
- Integrated Pressure Sense and Control
Features:
- Upslope / Downslope
- Quench / Temper
- Pulsation Sequence
- Multi-Weld Count/Multi-Current Select
- Preheat / Postheat
- Seam Weld (Continuous and Intermittent)
- 4 Cycle Modes
- 87° First Half Cycle Delayed Firing, Anti-Saturation Circuit
- Single Half Cycle Weld Selection
- Polarity Reverse Switch
- Single Stage Pilot / Two State Pilot
- Beat / Non-Beat Operation
