iPAK MPX Cascade
Medium Frequency DC Cascade Inverter Controls

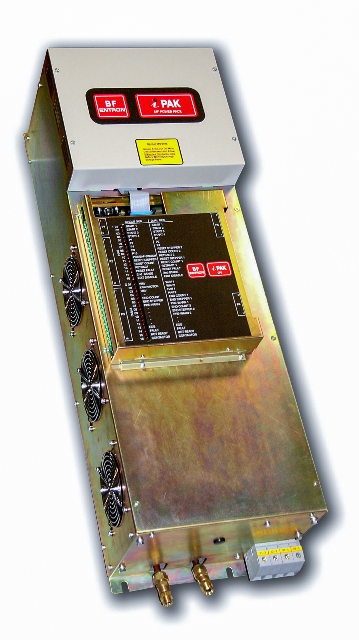

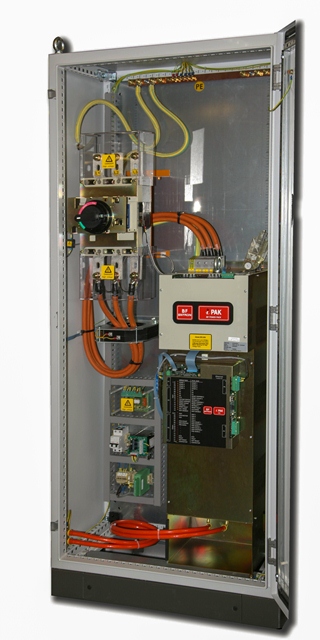

iPAK MPX is an integrated timer/controller/inverter system for MF resistance welding which uses modular architecture to fire multiple MFDC power supplies. The control section is housed in a cassette-type casing, which simply mounts onto the power pack for ease of maintenance. Millisecond precision, constant current and constant power operation, with comprehensive monitoring, assures weld quality.
Capabilities:
- Independent calibration files for each transformer
- Can build cascade programs to be executed in any order
- Current/Power Monitoring: High/Low limits and Pre-limit
- Proportional valve controller (0-10 V or 4-20 mA)
- Pressure Monitoring: High/Low limits
- Up to 3 analog inputs (2 x 0-10 V, plus 1 x 0-10 V or 4-20 mA)
Options:
- Constant Voltage regulation / Constant Power
- Isolation Contactors
- Fieldbus Interfaces – InterBus-S, Profibus DP and DeviceNet
- Plug-in option board provides 10/100Base-T Ethernet connection
- ELR/1 Earth-leakage Relay
- ELCR/1 Machine Protection Device
- I/O Expansion
- WSP3 hand-held Programming Pendant
Features:
- Configuration for 2, 3 or 4 MFDC transformers
- Spot / Repeat / Roll-spot / Seam (dual heat) / Seam (preheat)
- Pulsation, Upslope and Downslope
- Dual weld intervals per program (Preheat and Weld)
- 64 programs (internal or external selection)
- Constant Current regulation
- Programmable blocking on fault
- Weld Log keeps history of recent welds
- Programmable outputs (events)
- Retract/High-lift control
- Single or dual gun operation
- OHMA (Air over Oil) gun operation
- Machine Sequencer Logic
Software:
- WS98-iPAK PC Programming/Monitoring Software
