EN6001 Retrofit Kit
This is the 21’st century successor to the popular EN1000 series known for rock solid reliability and ease of use “the ENTRON workhorse” control EN1000 and EN1001. Reengineered with digital welding technology. Comparatively the EN6001 control has more standard features, more dedicated inputs and out-puts and a full LCD interface. The EN6001 is highly versatile with its range of cabinet options and offering sizes and configurations designed to fit into any installation.ENTRON EN6001 Weld Control
ENTRON Controls & Production Engineering presents the EN6001 weld control.
EN6001 Constant Current AC Controls
Details
OPTIONS:
- Program Lockout (key switch)
- Operation Mode Switch (Program Lockout and Weld/No Weld)
- Error Reset Switch
- Optional plug-in Ethernet card provide PLC compatibility via MODBUS and EtherNet/IP for remote I/O
TECHNICAL SPECIFICATIONS
BENEFITS:
- Low Cost Easier to Program
- More I/O
- USB backup Port
- Schedule Number: 0 to 63
- Squeeze Delay: 0 to 99 cycles
- Squeeze: 0 to 99 cycles
- Valve Mode: None / Combinations of Valve 1, and/or 2
- Weld1: 0 to 99 cycles
- Weld1 Current Regulation Mode: Phase Shift / Constant Current
- Heat1: 0 to 99%
- Current1: 0 to 60.00 kA
- Cool1: 0 to 99 cycles
- Slope: 0 to 99 cycles
- Weld2: 0 to 99 cycles
- Weld2 Current Regulation Mode: Phase Shift / Constant Current
- Heat2: 0 to 99%
- Current2: 0 to 60.00 kA
- Cool2: 0 to 99 cycles
- Hold: 0 to 99 cycles
- Off: 0 to 99 cycles
- Impulses: 1 to 99 cycles
- Heat/Current Offset: -15 to +15%
- Cycle Mode: Non-repeat / Repeat / Chained / Successive / Wait-here
FEATURES:
- Constant current regulation / Secondary feedback
- Current monitoring with high, low, and pre-limits
- Up to 64 programs (internal or external selection)

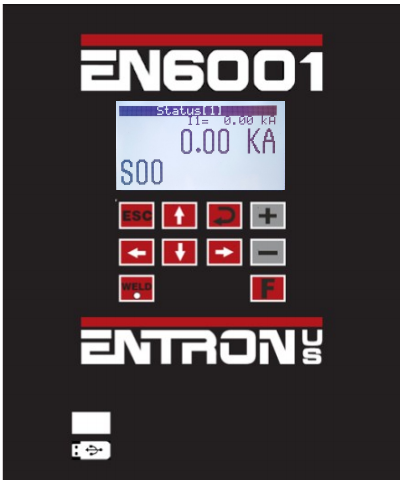

- On Timer Membrane Keyboard with backlit 128x64 (8 lines) LCD graphic display
- Six (6) inputs and four (4) outputs with output protection on CPU
- Electrode management functions, including stepping, current and force counting, tip-dressing and preset curves
- Welding programs may be linked together for complex spot schedules (chained or successive) Refresh firmware through USB device
- Load/export control settings from/to USB device
- AC 60/50 Hz welding supported
- Spot / Pulsation / Seam (quad heat) / Seam welding / Flash or Butt welding / Brazing
- Multiple weld intervals plus pulsation, upslope and downslope
- Air-over-oil gun operation
- Retraction – maintained, and momentary
- Water Saver (contactor timer)
- Head lock function
Documentation
DOCUMENTS:
- Conduction Monitoring Application
- User manual EN6001 700230H
- How To Configure for Soft Touch
- Communication Specifications for EN6001 Series Controls 700231C
- EN6001 EIP Communications Configuration Application Note 700237A
- En6001 Quick Start - Weld Schedule Creation 700242
- En6001 Easy Weld Application
